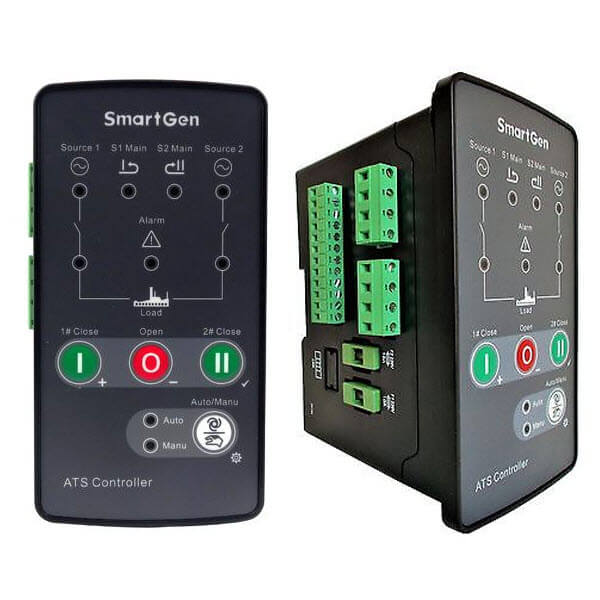

Smartgen HAT160: Bộ điều khiển ATS

HAT160 là bộ điều khiển ATS nhỏ gọn, tích hợp bảo vệ áp.
smartgen-hat160smartgen-hat160
Đánh giá: 4/5
Giá có VAT: 100 VND
Giá: 100 VND
Nhà sản xuất: ATS SmartGen
Chi tiết

HAT160 ATS Controller is suitable for CB ATS of single motor. It can accurately detect 2-way-3-phase 4-wire/single-phase 2-wire voltage and judge voltage abnormal (such as, over voltage, under voltage, over frequency, under frequency and lack of phase), then control ATS after delay. When ATS switch abnormally, the controller can detect close/open failure and alarm on the front panel to ensure the correct action of ATS. After abnormal of I# power, the controller will send signal to start the genset. The controller has remote communication, remote control and parameter configuration functions via LINK port communication.



PERFORMANCE AND CHARACTERISTICS



HAT160 controller can detect 2-way (2-way mains and 2-way gens or 1-way mains and 1-way gens) 3-phase/single phase voltage and control ATS.



  1. Measure and display 2-way 3 phase Voltage and Frequency:

  2. Over/under voltage, over/under frequency and loss of phase protection (active or deactive can be configured);

  3. Close/Open failure alarm;

  4. LED display work status;

  5. Auto/Manual mode. In manual mode, ATS can be switched by pressing front panel button;

  6. Applicable for 2 isolated neutral line.

  7. “1# Priority, 2# Priority (auto change, auto recovery), No Priority (auto change, manually recovery)” and “1#/2# power normal/abnormal delay” can be set via panel buttons;

  8. Automatic Re-closing;

  9. Close delay, delay is 0.5s;

  10. Any one way of A phase voltage is normal, the controller and ATS can normally work. When 2-way power and volts are abnormal at the same time, if any way of A phase voltage is normal, ATS will automatically transfer to Breaking (Middle) Position;

  11. Fire reset interface. When the input port is enabled, ATS will automatically transfer to Breaking (OFF) Position;

  12. Parameter setting: parts of parameters can be adjust from front panel; all can be adjust via LINK port(with SG72A adaptor) by using computer software;

  13. Digitization adjustment of parameters (abandon simulation adjustment, enhanced reliability and stability);

  14. Strong anti-electromagnetic interference ability, can be used under complex electromagnetic interference environment;

  15. Modular design, self extinguishing ABS plastic shell, pluggable terminal, compact structure;

  16. Three installation ways: panel built-in, internal 35mm slideway and internal screw mounting.


Function ItemParameter
Display LED
AC System 1P2W/3P4W
Alternator Voltage (170~277)V(ph-N)
Alternator Frequency 50/60Hz
Monitor Interface LINK
Programmable Interface LINK
Switch Over Priority
Applicable Switch Type One Motor Operation
Case Dimensions(mm) 87*158*120(L*W*H)
Panel Cutout(mm) 74*144
Operating Temp. (-25~+70)℃



Tài liệu kỹ thuật





Tải về máy catalogue bộ điều khiển ATS Smartgen HAT160
